Rafter reference · very steep slope
16/12 Roof Pitch
Everything a framer or DIYer needs to lay out rafters on a 16/12 pitch: angle, slope percent, rafter length per foot of run, and the Speed® Square method Albert Swanson invented for it in 1925.
Angle
53.13°
Slope
133.33%
Rafter / 12″ run
20″
Multiplier
1.6667
What a 16/12 pitch looks like on the jobsite
16/12 is 53.1°. At this angle you are as close to vertical as horizontal, expect metal or slate roofing, rarely shingle.
Common use cases:
- Turret and conical features
- Fantasy styles
Rafter length by run
Multiply the common rafter run (half the building width) by 1.6667. That is the rafter length before you add any tail overhang. The table below shows a few common runs:
| Run (ft) | Rafter length (ft) |
|---|---|
| 8 | 13.33 |
| 10 | 16.67 |
| 12 | 20.00 |
| 14 | 23.33 |
| 16 | 26.67 |
| 18 | 30.00 |
| 20 | 33.33 |
Add rafter tail length (typically 12 to 24 inches) if you want the full ridge-to-tail dimension.

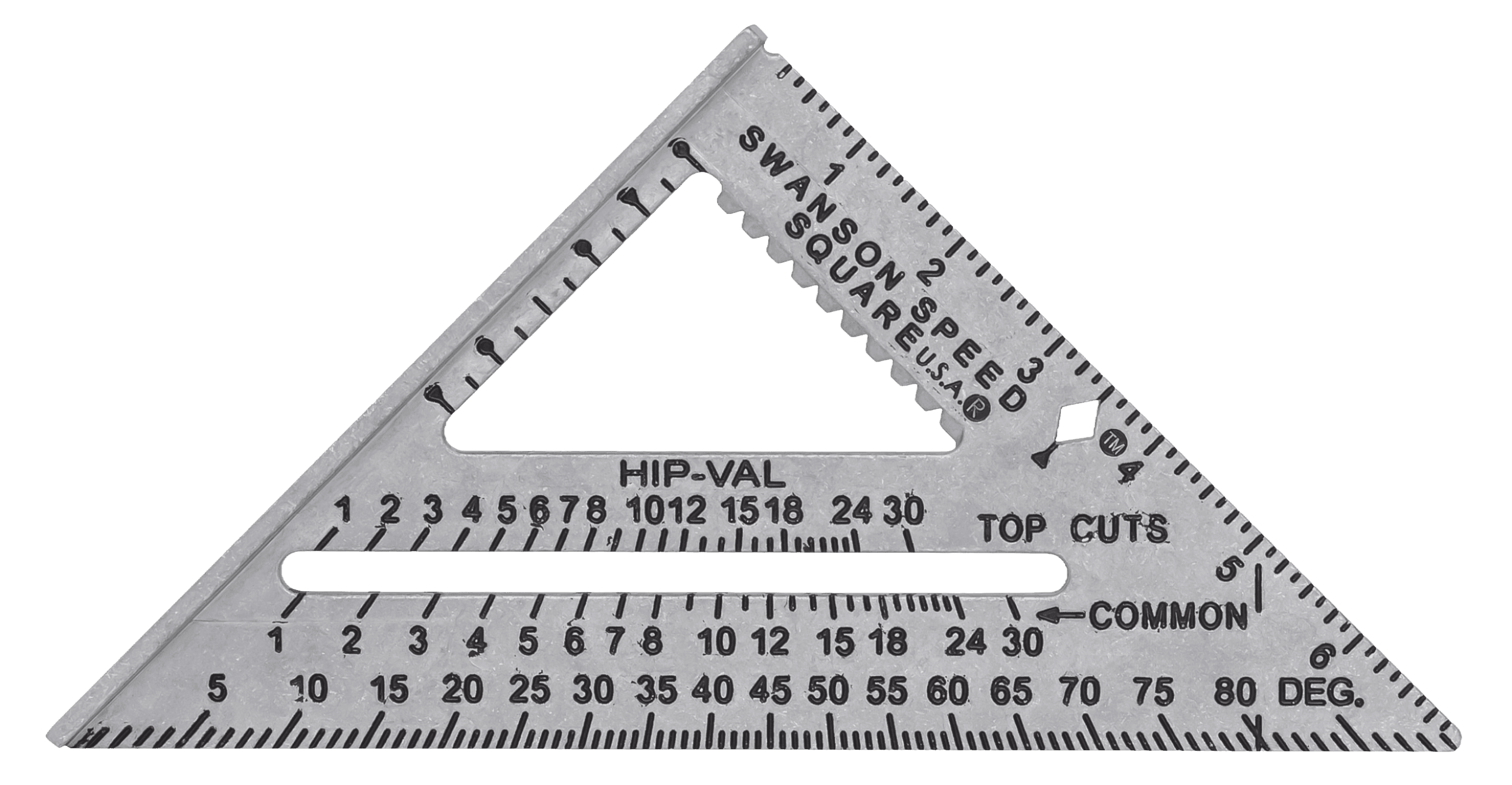

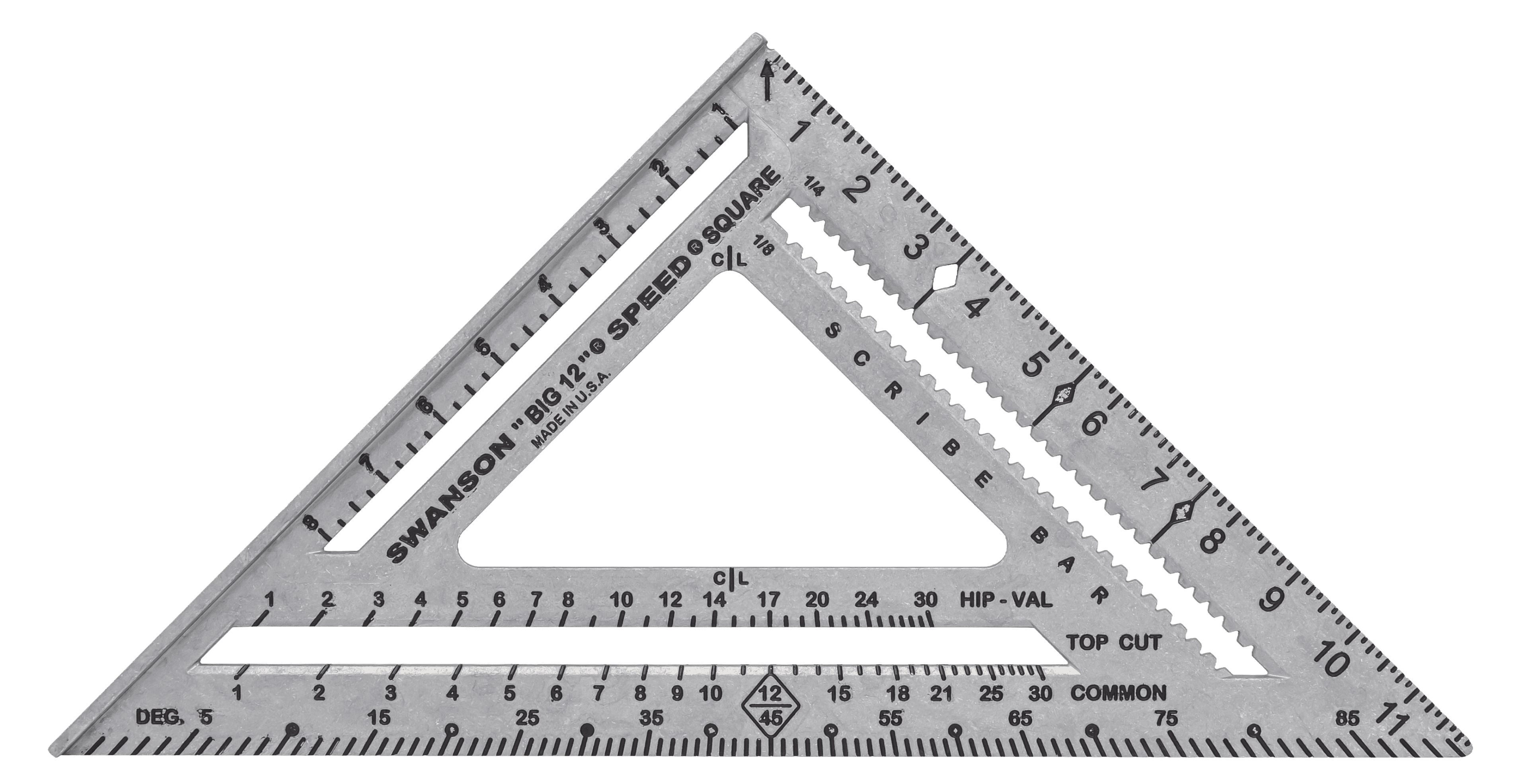

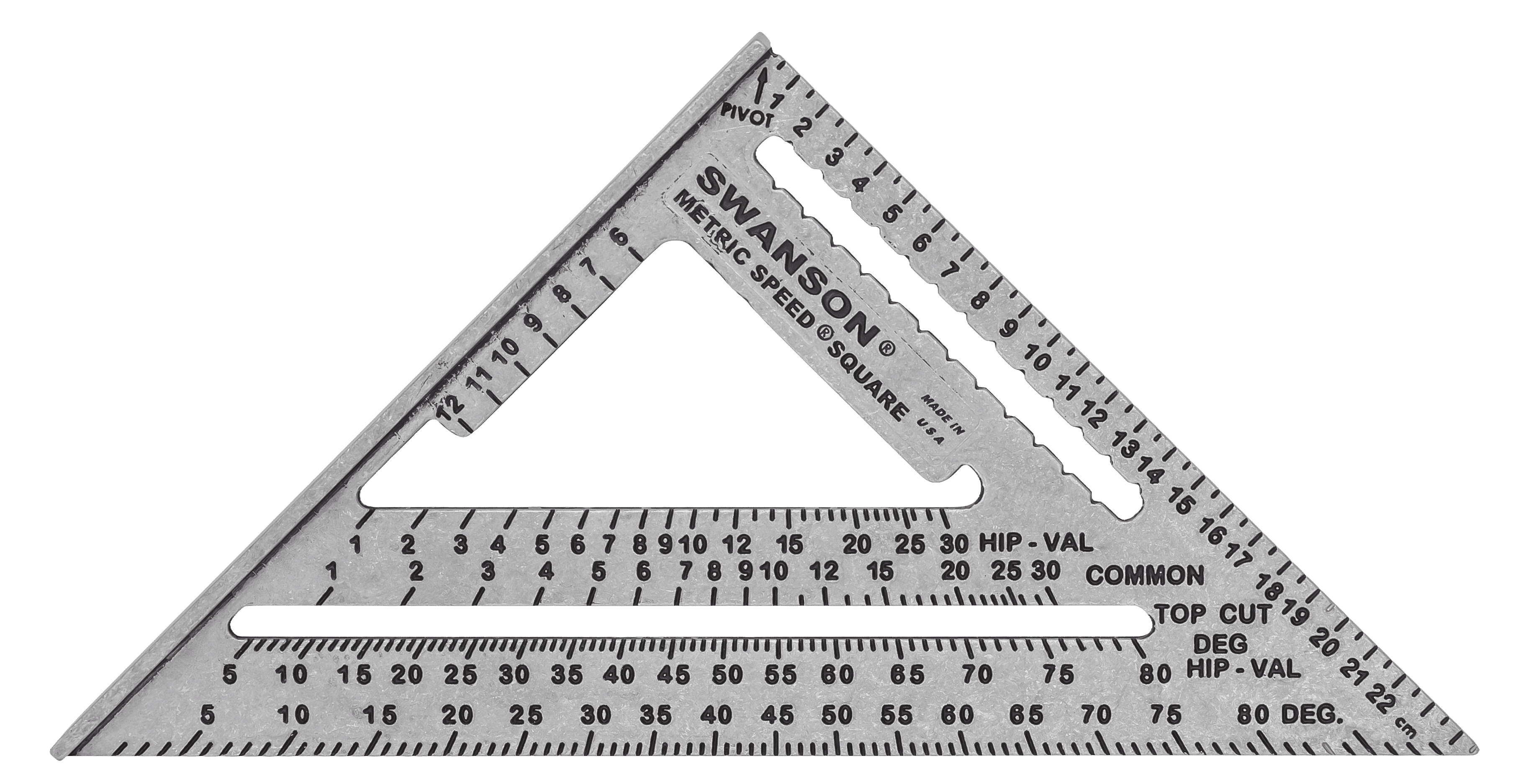

Laying it out with a Speed® Square
This is the One Number® method from the Blue Book of Rafter Lengths, the pocket reference Albert Swanson packaged with the first Speed® Square in 1925.
- 1Pivot the square on the top edge of the rafter. Find 16 on the common scale and align it with the top edge. Scribe a plumb line, that is the ridge cut.
- 2From the long point of the plumb, measure run × 1.6667 along the top edge to locate the seat cut.
- 3At the seat mark, scribe a plumb at the same 16 common reference, then a level line equal to the top-plate width. Cut both ends and test-fit.
